Finishing printing materials

Finishing refers to any of several operations that may be performed on printed material after it has left the press. The most common finishing operations are cutting, folding, and gathering. Other finishing technigues include scoring, perforating, drilling, embossing, and die cutting.

CUTTING. A hand-lever "guillotine" paper cutter is shown in Figure 10-1. The paper to be cut is held in position on the bed of the machine by the paper clamp. Depth of cut is controlled by adjusting the distance between the back fence and the blade. As the operator pulls down on the hand lever. the paper is cut.Hand-lever

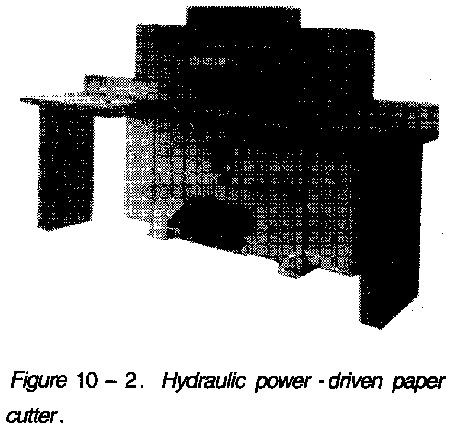

Another type of guillotine cutter is shown in Figure 1-2. It is a large hydraulic, power-driven model. The size of a paper cutter is the maximum width of the paper it can cut.Hydraulic power-driven paper cutter.

Operating a Paper Cutter. The operation of hand-operated and power-operated cutters is essentially the same.

Safety Notes. Secure permission before using the paper cutter. Only one person should operate this machine at a time. Keep both hands away from the blade and out of the blade path.

Begin by moving the back fence to obtain the desired depth of cut. The front handwheel is used to move the back fence. The distance betwen the blade and fence on most cutters is shown on a measuring tape or a scale built into the bed of the machine.
Jog(straighten) the paper and place it on the bed of the cutter. Set the paper pile against the back fence and along the left side of the paper cutter.

Now place a strip of chipboard under the paper pile in the area directly below the blade. The chipboard extends the life of the wooden or plastic cutting stick which it covers. Place another strip of chipboard on top of the paper, directly below the paper clamp. This strip will protect the top sheets of paper from being damaged by the clamp.

Lower the paper clamp by turning the paper clamp wheel to the right. The clamp should press the paper tightly against the bed of the cutter.

Modem machines require an operator to use both hands to activate the cutter blade. Some hand-lever cutters contain a safety pin which must be held with the left hand while the right hand pulls on the lever. Others require the operator to grasp the lever with two hands in order to activate the blade. Power cutters are usually equipped with dual controls that must be operated with both hands.

When the cut is complete, raise the blade. Check to be sure the blade locked in its uppermost position. Then raise paper clamp and remove the pile of paper. If the other dimension needs to be trimmed, turn the paper and repeat the above process.

Safety Note. Always adjust the paper clamp to its lowest position before you leave the cutter area. Be sure to turn off the power on hydraulic machines.

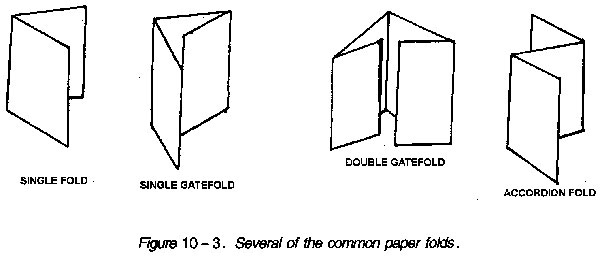

FOLDING. A small folding machine can fold a small sheet of paper such as a letter or brochure. Large, heavy-duty folders are capable of folding book and magazine signatures. A signature is a sheet of paper that has been folded a number of times, then trimmed with a paper cutter to form papes. Some common paper folds are shown in Figure 10-3.
Several of the common paper folds.

GATHERING. A ssembling single sheets of paper or signatures in sequence before binding is called gathening. Gathering may be done by hand or by machine. Machines used for gathering are called collator.

SCORING. The scoring operation is used to crease heavy paper or cardboard so that it can be easily and smoothly folded. A platen press can used for this purpose. Lock a piece of steel scoring rule in the chase. Scoring rule has a rounded face and is type high. Place the chase in the press and remove the ink rollers. Pack the platen and position the gage pins. Then feed the paper into the press as if it were being printed. Each sheet will be creased when the scoring rule strikes it.

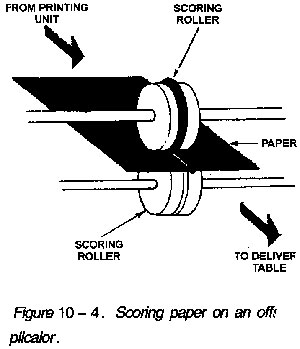

Scoring can also be done by attaching scoring rollers to the delivery side of an offset duplicator, Figure 1-4. The rollers crease each sheet of paper as it is transferred from the printing unit to the delivery table.Scoring paper on an offset duplicalor.

FERFORAING. Perforating is similar to scoring. The difference is that in perforating, a series of slits or holes are punched into the paper or cardstock or cardstock to facilitate tearing. An offset duplicator can be used to perforate the sheet by a perforating wheel attached to delivery end of the machine.

To perforate on a platen ress, lock up a steel perforating rule in chase. Remove the rollers prevent the rule from cutting into them. Also protect the platen by covering it with a metal plate. Place a piece of tympan paper over this metal plate, and position the gage pins as required. Then feed the paper into the press as if it were being printed. Each sheet will be perforated when the rule strikes it.
DRILLING. A drill is used for drilling round holes through paper. Several hundred sheets can be drilled at one time.

Paper drill bits come in various sizes and are hollow. As the bit cuts into the paper, round chips chips are fed up through the drill bit and into a waste compartment at the back of the machine. Loose-leaf papes are prepared in this way.

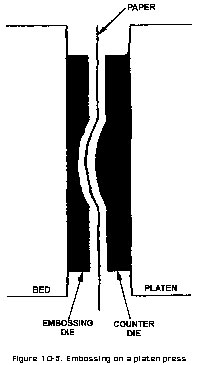

EMBOSSING. Embossing is generally done on a platen press. An embossing die is locked up in bed of the press and a counter die of the embossed image is attached to the platen. When the paper is pressed between the embossing and counter dies, Figure 10-5, a raised or embossed image results on the paper.Embossing on a platen press.

The embossing die is usually made of brass. Its intaglio image is etched or engraved. The counter die for the platen is made by impresing the embossing die into soft paper mache forming a relief image. When dry, the paper mache die is glued to the platen where the embossing die will strike.

DIE CUTTING. Die cutting is cutting is cutting out various shapes in paper or cardboard. It includes punching regular and irregular shaped holes. Die cutting is usually done on a platen press.

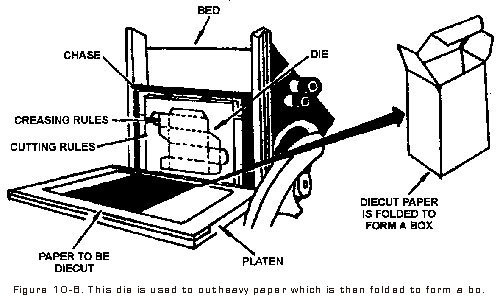

A die consists of one or more pieces of sheel cutting rule bent to form the desired shape. The die is set into a plywood saw kerf(cut) in the same shap, A band or jig saw can be used to make the cut. Several small pieces of sponge rubber or cork are then glued glued to the plywood base. These force out of the die after it is cut. A die used to cut a small box blank is shown in Figure 10-6.
This die used to cut heavy paper which is then folded to form a box.

Die cutting on the platen press is done by locking up the die in the chase. Remove the rollers to prevent the die form cutting into them. Also protect the platen by covering it with a metal plate. Place a piece of tympan paper over this metal plate and position gage pins as required. Then feed the paper into the press as if it were being printed. Each sheet will be cut when the die strikes it.
